Skill Tech SH 860P (Suitable For Most 50" ~ 90" Screens) - Heavy-Duty Full-Motion Tv Wall Mount
Skill Tech SH 860P (Suitable For Most 50" ~ 90" Screens) - Heavy-Duty Full-Motion Tv Wall Mount

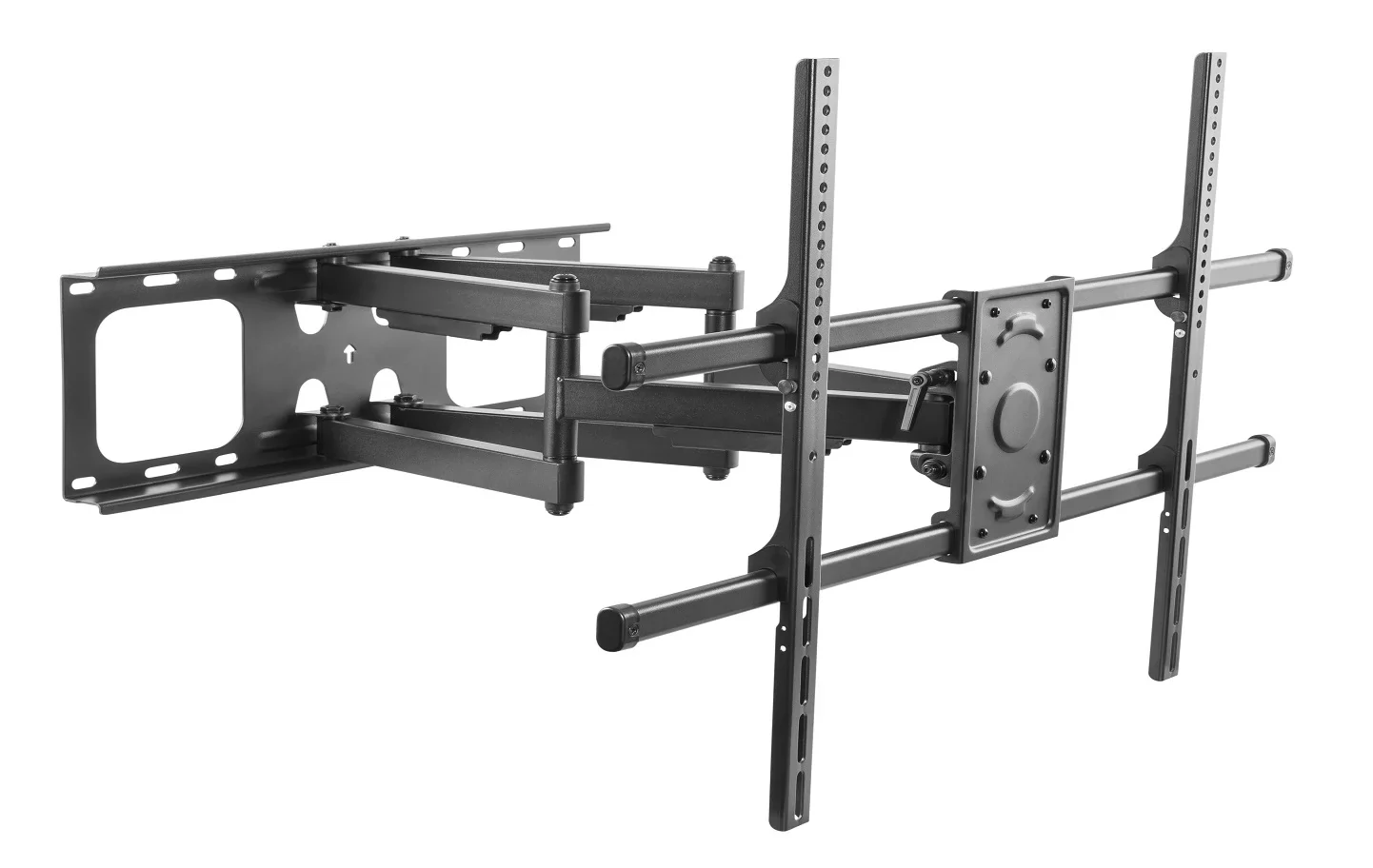

The new solid ultra-large full-motion mount SH 860P is constructed with high gauge steel that is designed for most 50"-90" flat-panel TVs up to 75kg/165lbs. This mount allows you to have your flat panel TV tilted for glare control or optimum viewing angle, pulled out from the wall (635mm extension), and angled towards a separate viewing area. Quick-lock and release system keeps the TV in place with no tools required. The pre-assembled arm comes with integrated cable management and decorative covers to ensure an elegant and tidy look.
| Product Category: | Full-Motion TV Wall Mount |
| Rank: | Standard |
| Material: | Steel |
| Pipe Size: | 40x25x1.5mm (1.6"x0.98"x0.059") |
| Surface Finish: | Powder Coating |
| Color: | Fine Texture Black |
| Dimensions: | 635x885x630mm (25"x34.8"x24.8") |
| Fit Screen Size: | Suitable For Most 50" ~ 90" Screen |
| Fit Curved TV: | Yes |
| Mounting Hole Pattern : | VESA & Universal |
| VESA Compatible: | 400x400,600x400,800x400,800x600 |
| Strength Tested: | 2 Times Approved |
| Profile: | 69-635mm (2.7"~25") |
| Tilt Range: | +5° ~ -15° |
| Swivel Range: | +60° ~ -60° |
| Screen Level: | +3° ~ -3° |
| Screen Freely Tilting: | No |
| Installation: | Double Stud(406mm/450mm/600mm),Solid Wall |
| Weight Capacity | 75kg |
| Panel Type: | Detachable Panel |
| Wall Plate Type: | Fixed Wall Plate |
| Cable Management: | Yes |
| Anti-theft: | No |
| Bubble Level: | Hook-on Bubble Level(Included in Components Package) |
Download Datasheet
Download Sketch
Description
The new solid ultra-large full-motion mount SH 860P is constructed with high gauge steel that is designed for most 50"-90" flat-panel TVs up to 75kg/165lbs. This mount allows you to have your flat panel TV tilted for glare control or optimum viewing angle, pulled out from the wall (635mm extension), and angled towards a separate viewing area. Quick-lock and release system keeps the TV in place with no tools required. The pre-assembled arm comes with integrated cable management and decorative covers to ensure an elegant and tidy look.
| Product Category: | Full-Motion TV Wall Mount |
| Rank: | Standard |
| Material: | Steel |
| Pipe Size: | 40x25x1.5mm (1.6"x0.98"x0.059") |
| Surface Finish: | Powder Coating |
| Color: | Fine Texture Black |
| Dimensions: | 635x885x630mm (25"x34.8"x24.8") |
| Fit Screen Size: | Suitable For Most 50" ~ 90" Screen |
| Fit Curved TV: | Yes |
| Mounting Hole Pattern : | VESA & Universal |
| VESA Compatible: | 400x400,600x400,800x400,800x600 |
| Strength Tested: | 2 Times Approved |
| Profile: | 69-635mm (2.7"~25") |
| Tilt Range: | +5° ~ -15° |
| Swivel Range: | +60° ~ -60° |
| Screen Level: | +3° ~ -3° |
| Screen Freely Tilting: | No |
| Installation: | Double Stud(406mm/450mm/600mm),Solid Wall |
| Weight Capacity | 75kg |
| Panel Type: | Detachable Panel |
| Wall Plate Type: | Fixed Wall Plate |
| Cable Management: | Yes |
| Anti-theft: | No |
| Bubble Level: | Hook-on Bubble Level(Included in Components Package) |
