BOYA BY-XM6-K2W Dual Wireless Lavalier Microphone System (White) - 2 Transmitters for DSLR, Camcorders, Smartphones

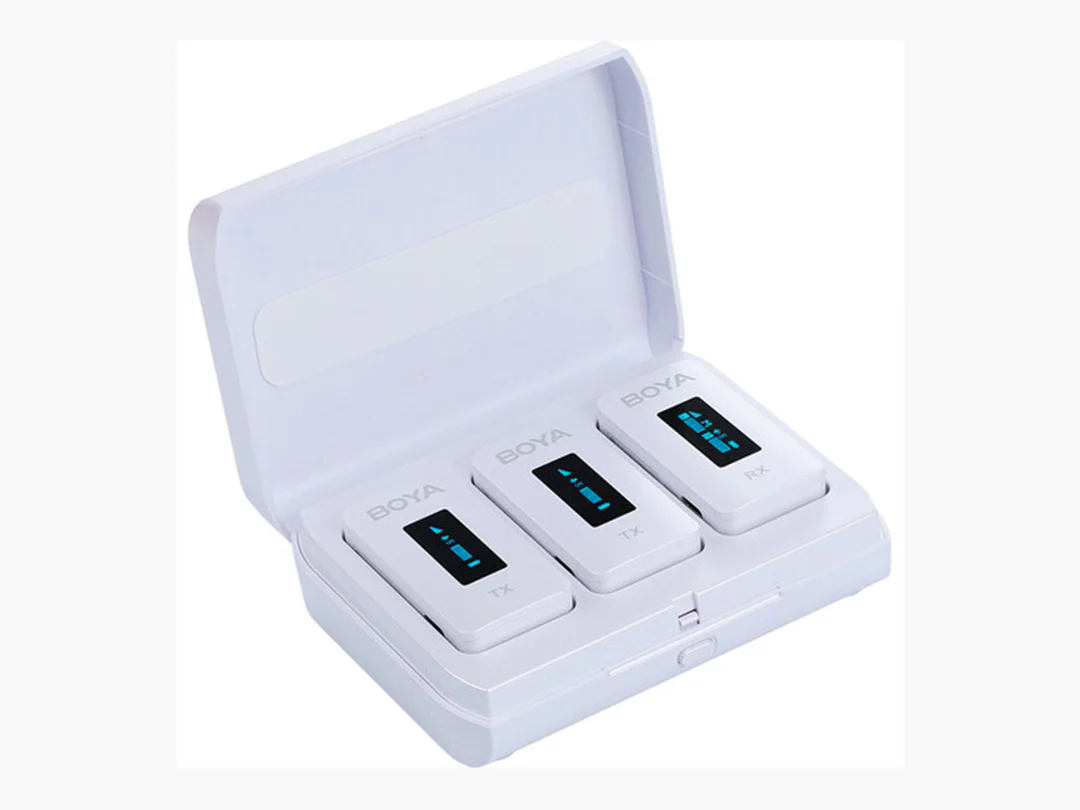

Capture audio in your next 2-person vlog or interview with your compatible camera, smartphone, or other recording device using the BY-XM6-K2 2-Person Wireless Microphone System from BOYA. The system includes two clip-on transmitters with built-in omnidirectional microphones and a dual-channel receiver with 3.5mm TRS connectivity. OLED screens on each component allow you to observe battery life and signal strength while adjusting parameters like gain and mute. The system also includes two omnidirectional microphones, furry and foam windscreens, 3.5mm TRS cable, 3.5mm TRS to TRRS cable, USB-C charging cable, and a charging case to replenish all of the components.

Wide Device Compatibility

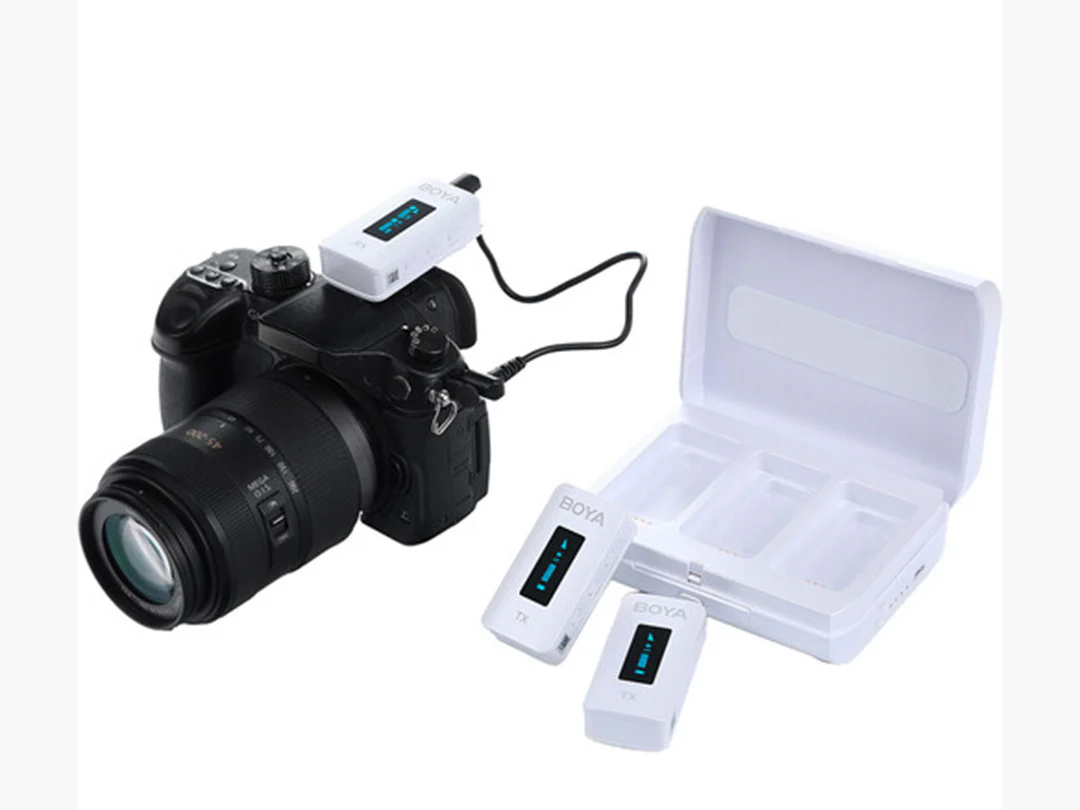

• The 3.5mm TRS output on the receiver unit can be used with included cables to record audio to your DSLR/mirrorless camera, compatible smartphone, or other audio recorder.
• A built-in back clip on the receiver can attach to your cinematographer or slide into any cold shoe mount to turn the unit into a camera-mountable device.

Real-Time Monitoring

Both the receiver and transmitters have 3.5mm TRS headphone ports, which allow you to simultaneously monitor the quality of your sound recording to ensure your levels are up to par. Use the included furry windscreens with the transmitters to prevent noise disturbances from windy conditions.

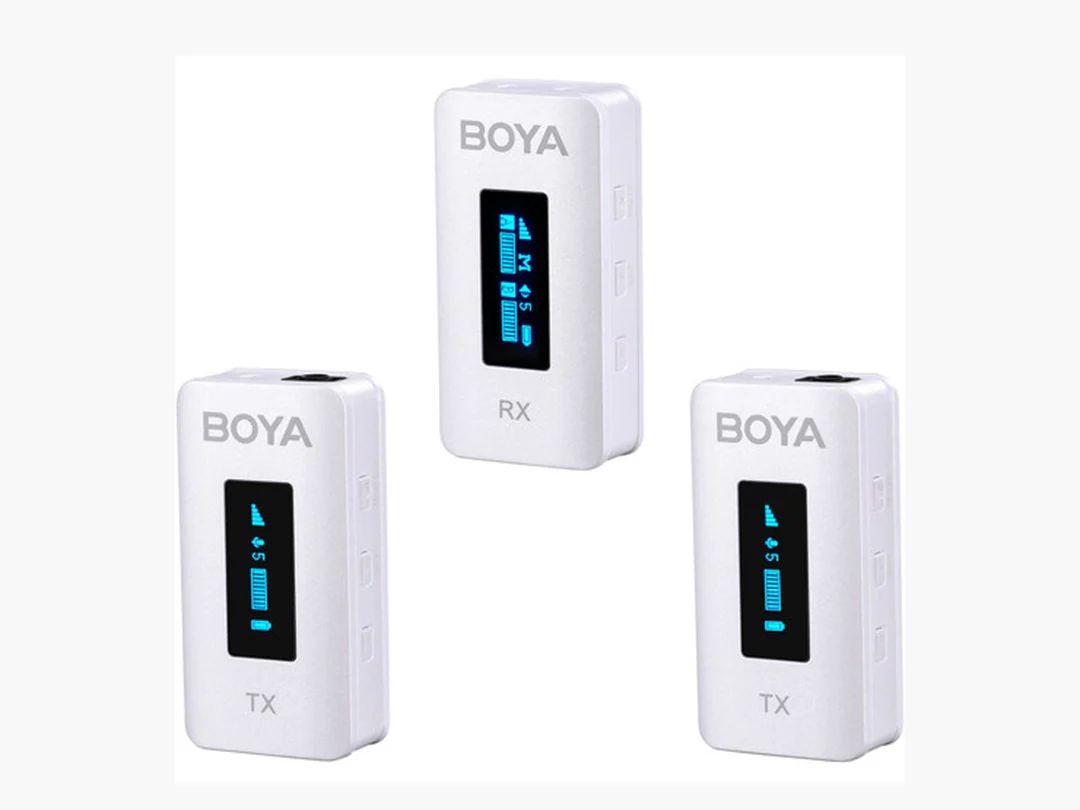

Compact Clip-On Transmitters

Integrated omnidirectional microphones and 3.5mm TRS inputs for the included lavalier microphones can capture crisp audio in your next 2-person interview. Integrated back clips easily attach each transmitter to your talent's lapel. The included lavalier microphone and mic clip can facilitate low-profile recording.

OLED Screens, Onboard Controls

Each component features a built-in OLED screen, which display pairing status, connection, and battery level. Both the receiver and the transmitters have onboard controls to facilitate functions like mute and select recording modes. You can also control the transmitter's 6 levels of gain.

Stable Adaptive Frequency Hopping Transmission

The BY-XM6-K2 features built-in 2.4 GHz frequency with Adaptive Frequency Hopping technology for improved communication even in crowded frequencies. Transmit audio signals from up to 328' away without obstruction.

Long Battery Life, Charging Case

• Each transmitter unit and receiver unit feature built-in batteries capable of running for up to 7 hours and 6.5 hours at a time, respectfully.
• USB-C ports on each unit or the included charging case can recharge the system once depleted.
• The charging case has a 3000mAh battery capable of recharging your system twice. Once out of juice, recharge the case in 4.5 hours. An LED power indicator allows you to check battery capacity and charging status.

Key Features

·        For Content Creation, Mobile Journalism

·        2-Person Shoots with Camera or Phone

·        2 x Transmitters with Built-In Mic

·        Dual-Channel Receiver

·        Omnidirectional Lavalier Microphones

·        328' Transmission Distance

·        3.5mm TRS Ports, USB-C Charging Ports

·        6 Levels of Gain Control, OLED Screens

·        Built-In Rechargeable Batteries

·       Included Charging Case



Key Specs



Wireless Technology	Analog 2.4 GHz
Included Transmitters	2x Clip-On with Microphone
Diversity	Non-Diversity
Max Operating Range	328.1' / 100 m
Receiver Type	Plug-In (1/8" / 3.5 mm TRS) / Plug-In (1/8" / 3.5 mm TRRS)
Microphone Type	Built-In (Transmitter)
Polar Pattern	Omnidirectional



System



Wireless Technology	Analog 2.4 GHz
Included Transmitters	2x Clip-On with Microphone
Diversity	Non-Diversity
RF Channel Scanning	Auto-Scan
Max Operating Range	328.1' / 100 m
Max Transmitters per Band	2
Built-In Recorder	No
Timecode Support	No
Mobile App Compatible	No
Modulation	GFSK

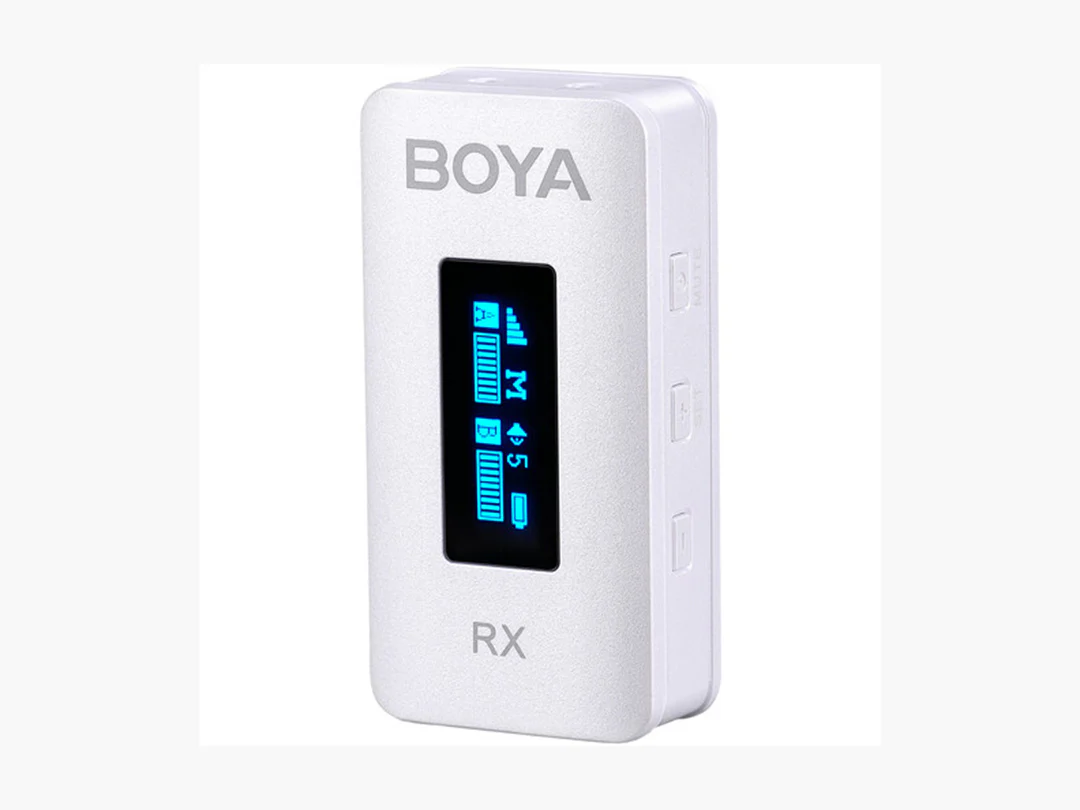

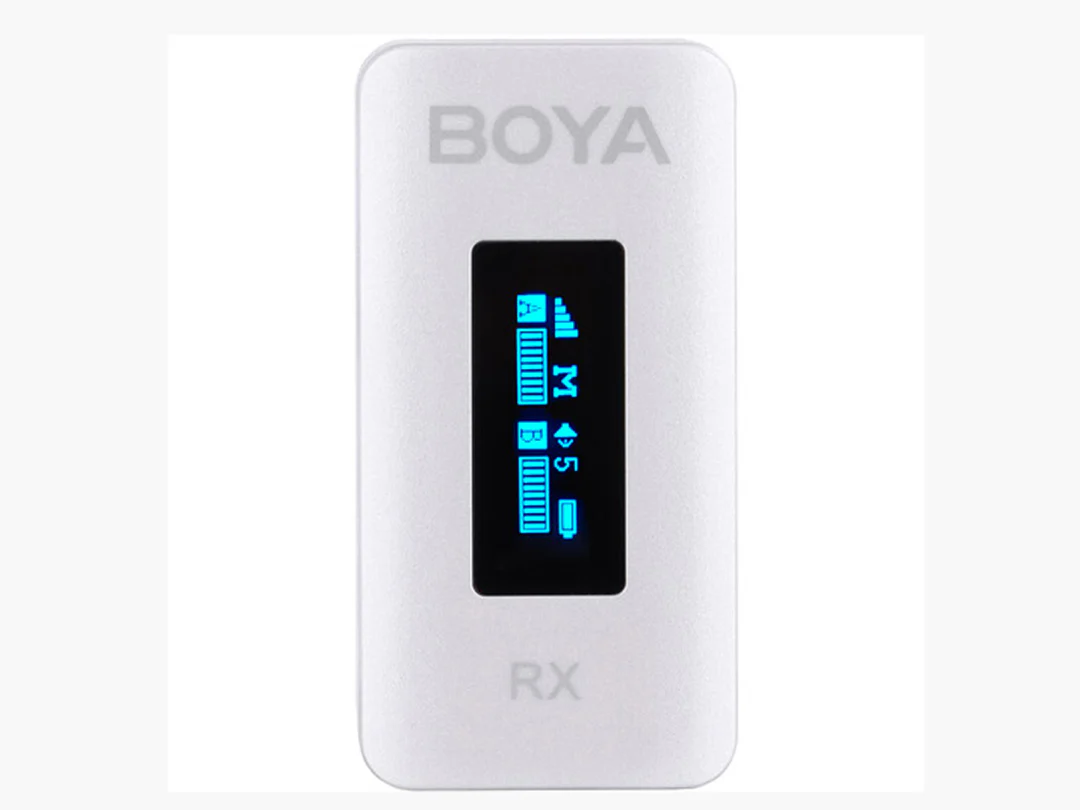

Receiver



Receiver Type	Plug-In (1/8" / 3.5 mm TRS) / Plug-In (1/8" / 3.5 mm TRRS)
Mounting Options	Belt Clip (with Included Hardware)
Antenna	PIFA
Number of Audio Channels	2
Audio I/O	1x 1/8" / 3.5 mm TRS Unbalanced Line Output 1x 1/8" / 3.5 mm TRS Unbalanced Headphone Input
Audio Output Level	-60 to -20 dBV
Frequency Response	50 Hz to 18 kHz
Network I/O	No
USB/Lightning Connectivity	USB-C Female (Charging)
USB Class-Compliant	No, USB Charging/Power Only
Power Requirements	Battery
Battery Type	1x Built-In Rechargeable
Approx. Battery Life	6.5 Hours
DC Input Power	5 VDC
Display & Indicators	OLED
Operating Temperature	14 to 122°F / -10 to 50°C
Storage Temperature	-4 to 131°F / -20 to 55°C
Dimensions	2.4 x 1.2 x 0.6" / 62.1 x 31.6 x 16.5 mm
Weight	1.1 oz / 32 g

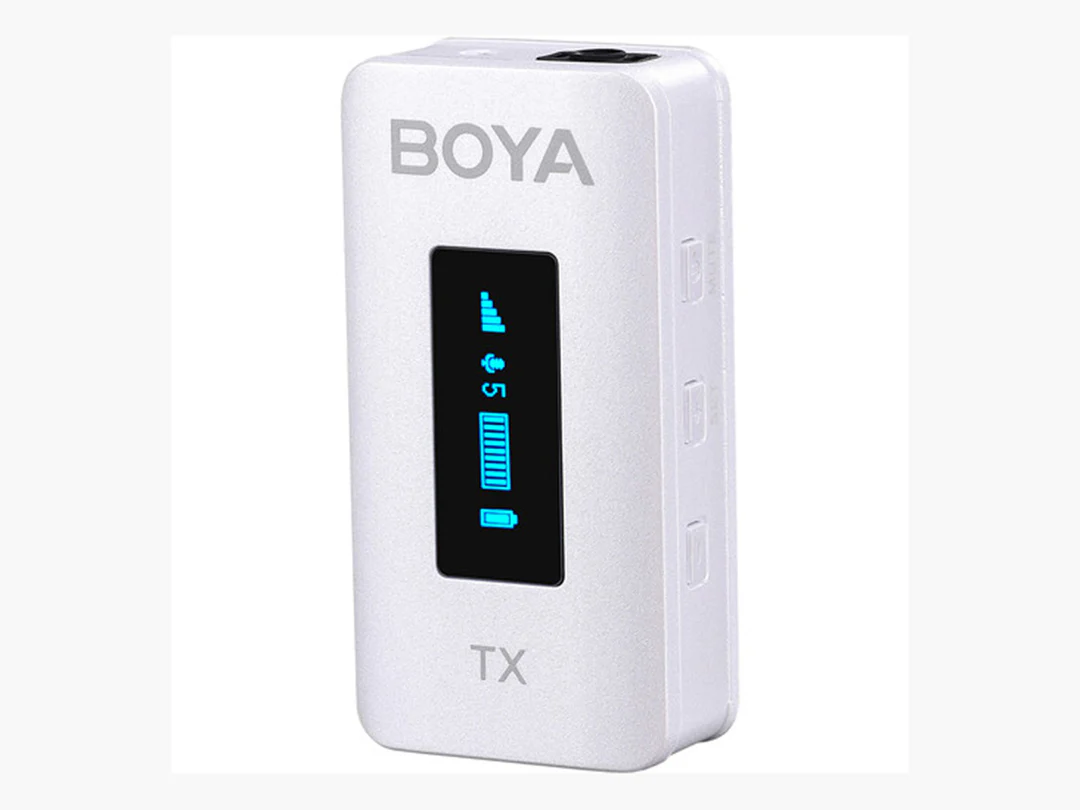

Transmitter



Transmitter Type	Clip-On with Microphone
RF Output Power	< 10 mW
Audio I/O	1x 1/8" / 3.5 mm TRS Female Input
Auto-Level Control	No
Frequency Response	50 Hz to 18 kHz
Sync Method	2.4 GHz QPSK
Antenna	PIFA
Power Requirements	Battery
Battery Type	1x Built-In Rechargeable
Approx. Battery Life	7 Hours
USB/Lightning I/O	USB-C (Charging)
Display & Indicators	OLED
Operating Temperature	14 to 122°F / -10 to 50°C
Storage Temperature	-4 to 131°F / -20 to 55°C
Dimensions	2.4 x 1.2 x 0.6" / 62.1 x 31.6 x 16.5 mm
Weight	1.1 oz / 32 g



Microphone



Microphone Type	Built-In (Transmitter)
Color	White
Sound Field	Mono
Polar Pattern	Omnidirectional
Frequency Range	50 Hz to 18 kHz
SNR	84 dB
Maximum SPL	120 dB SPL
Sensitivity	-39 dB



Charging Case



Recharge Time	4.5 Hours
Capacity	3000 mAh
Charging Interface	USB-C
DC Input Power	5 VDC at 1.5 A
Dimensions	4.9 x 3.8 x 1.4" / 125 x 96.8 x 35.6 mm
Weight	7.1 oz / 200 g
