GIGABYTE B760M DS3H DDR4 LGA 1700 Intel B760 M-ATX Motherboard

GIGABYTE B760M DS3H DDR4 LGA 1700 Intel B760 M-ATX Motherboard

Overview:

  • Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors
  • DDR4 Compatible: Dual Channel DDR4, 4 DIMMs
  • Sturdy Power Design: 6+2+1 Hybrid Digital VRM Design
  • Comprehensive Thermal Design: M.2 Thermal Guard
  • Next Gen Connectivity: PCIe 4.0, NVMe PCIe 4.0 x2 M.2, USB 3.2 Gen 2 Type-C
  • Fast Networking: 2.5GbE LAN
  • Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU

Specification:

Brand

GIGABYTE

Model

B760M DS3H DDR4

News & Updates


2024/08/12: The new BIOS with Intel microcode (0x129) enhancing the

 stability of Intel Core 13th and 14th Gen desktop processors is now available.

Please visit support site for the latest BIOS updates.

CPU Socket Type

LGA 1700



CPU Type



Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700)

Chipset



Intel B760

Number of Memory Slots



4x288pin (DDR4)



Memory Standard



Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)

/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)

/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)

/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules



Maximum Memory Supported



128GB



Channel Supported

Dual Channel

PCI Express 4.0 x16



1 x PCI Express 4.0 x16


Storage devices

SATA: 4 x SATA 6Gb/s, CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

Onboard LAN

Max LAN Speed: 2.5Gbps

Form Factor

Micro ATX
$41.13

Original: $137.09

-70%
GIGABYTE B760M DS3H DDR4 LGA 1700 Intel B760 M-ATX Motherboard—

$137.09

$41.13

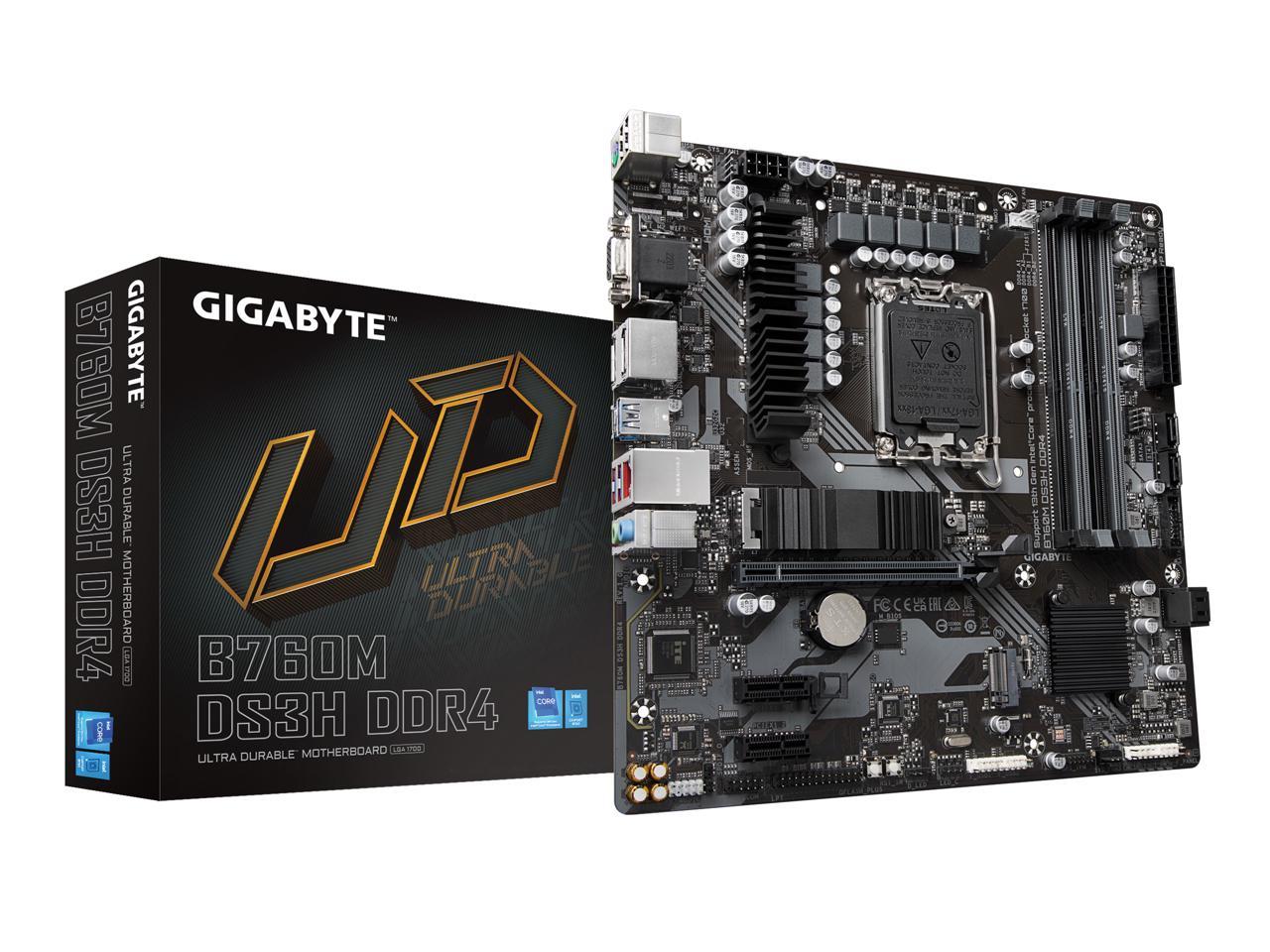

Product image 1

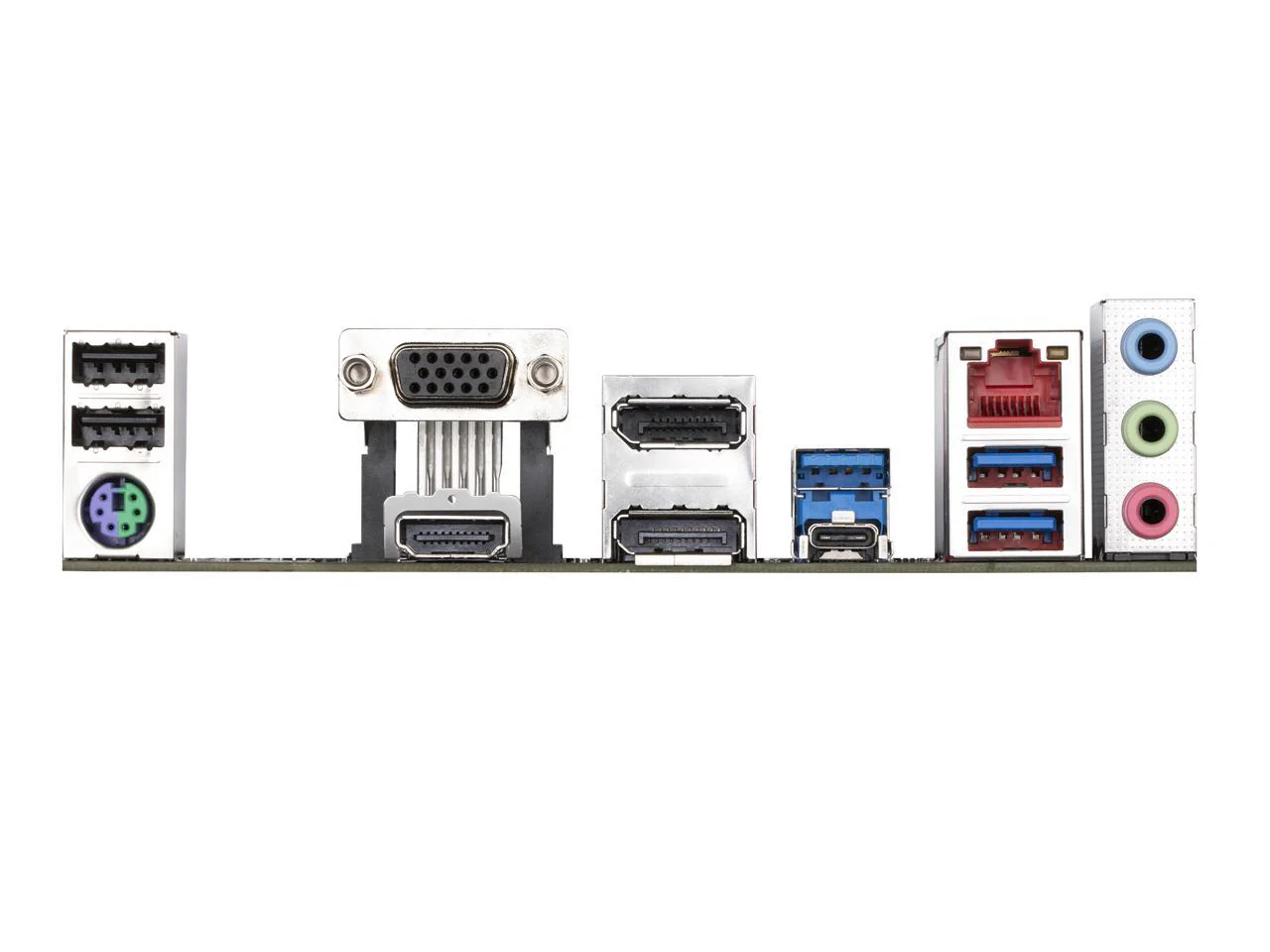

Product image 2

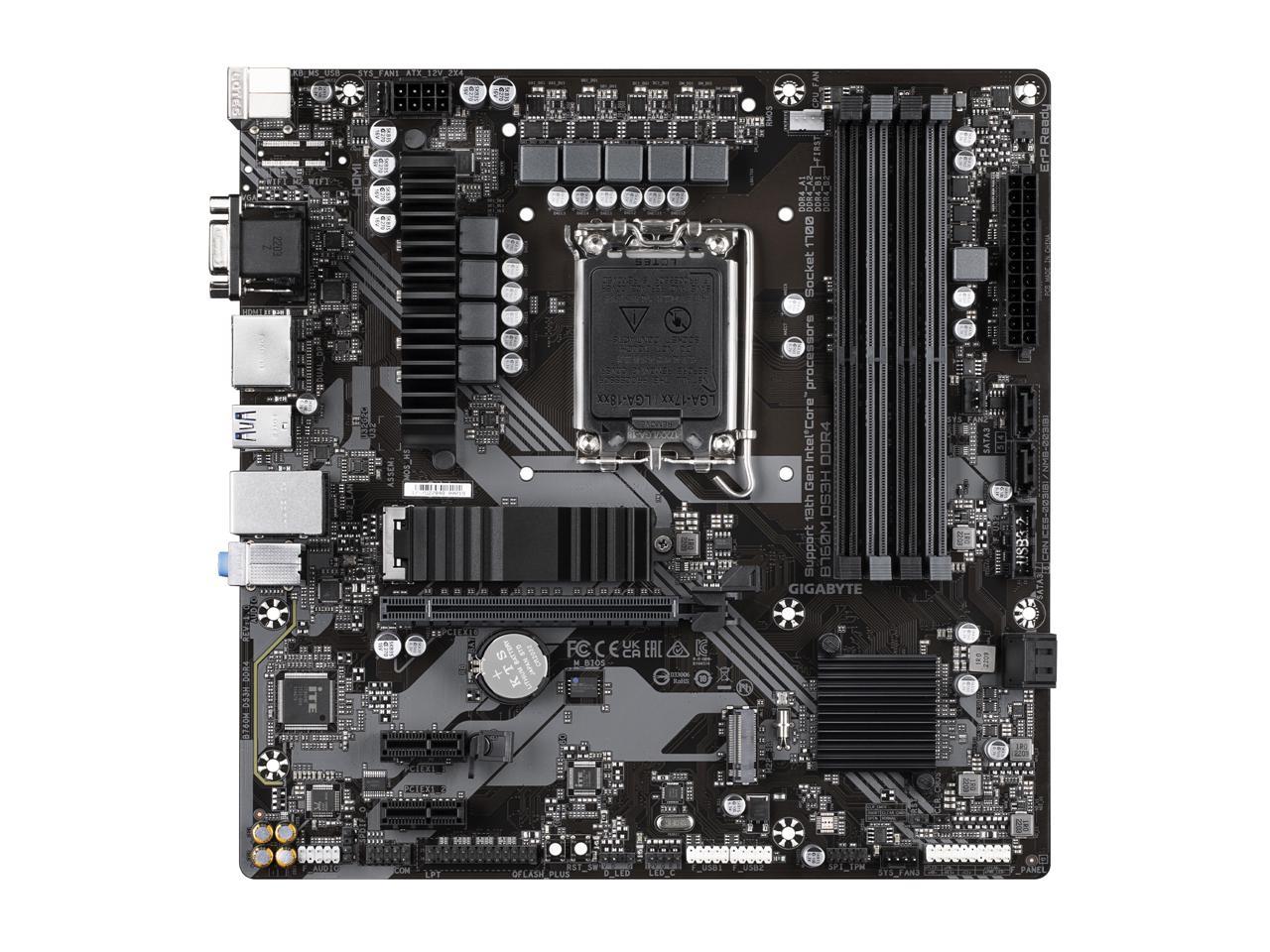

Product image 3

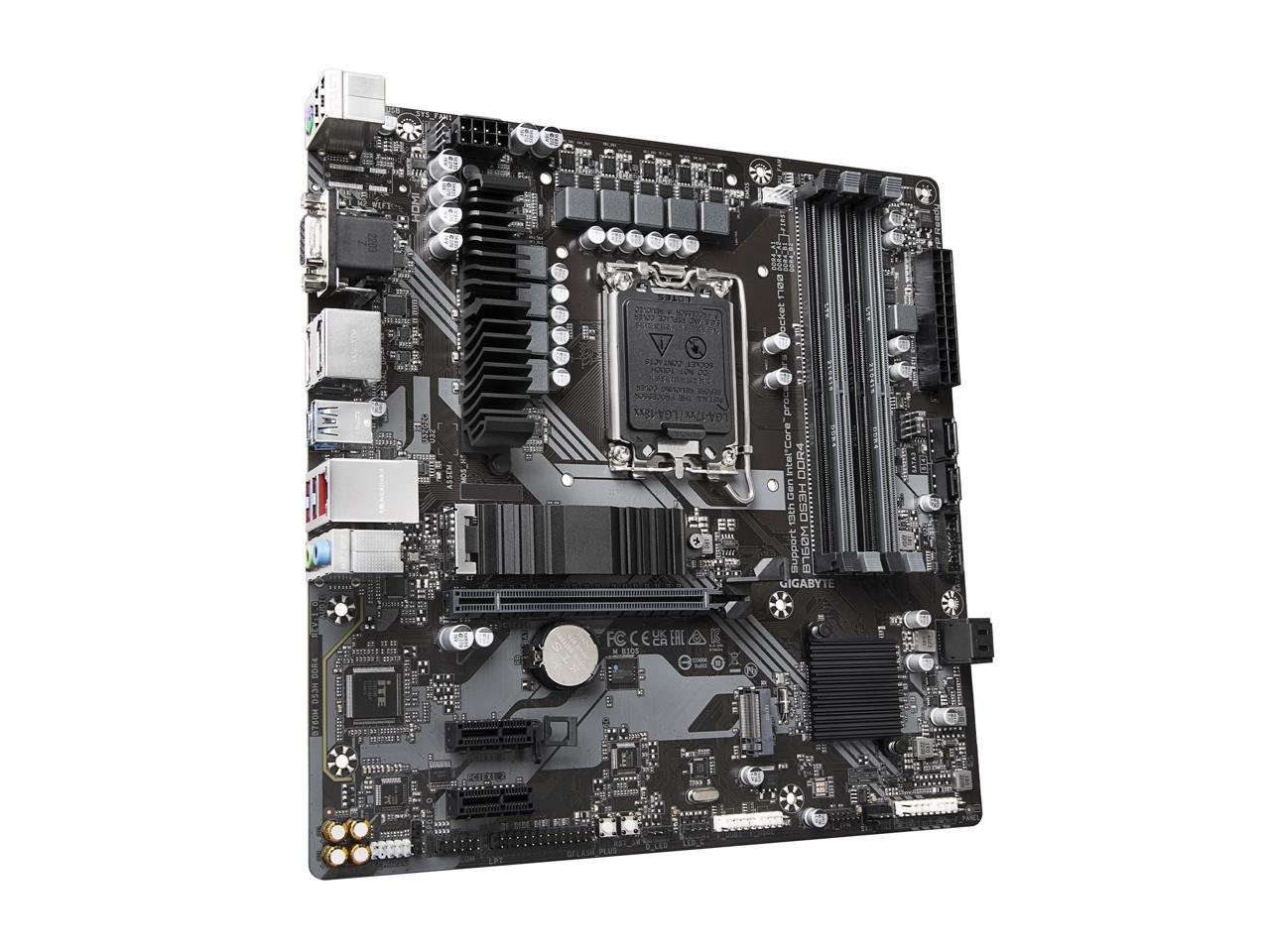

Product image 4

Description

Overview:

  • Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors
  • DDR4 Compatible: Dual Channel DDR4, 4 DIMMs
  • Sturdy Power Design: 6+2+1 Hybrid Digital VRM Design
  • Comprehensive Thermal Design: M.2 Thermal Guard
  • Next Gen Connectivity: PCIe 4.0, NVMe PCIe 4.0 x2 M.2, USB 3.2 Gen 2 Type-C
  • Fast Networking: 2.5GbE LAN
  • Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU

Specification:

Brand

GIGABYTE

Model

B760M DS3H DDR4

News & Updates


2024/08/12: The new BIOS with Intel microcode (0x129) enhancing the

 stability of Intel Core 13th and 14th Gen desktop processors is now available.

Please visit support site for the latest BIOS updates.

CPU Socket Type

LGA 1700



CPU Type



Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700)

Chipset



Intel B760

Number of Memory Slots



4x288pin (DDR4)



Memory Standard



Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)

/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)

/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)

/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules



Maximum Memory Supported



128GB



Channel Supported

Dual Channel

PCI Express 4.0 x16



1 x PCI Express 4.0 x16


Storage devices

SATA: 4 x SATA 6Gb/s, CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

Onboard LAN

Max LAN Speed: 2.5Gbps

Form Factor

Micro ATX
