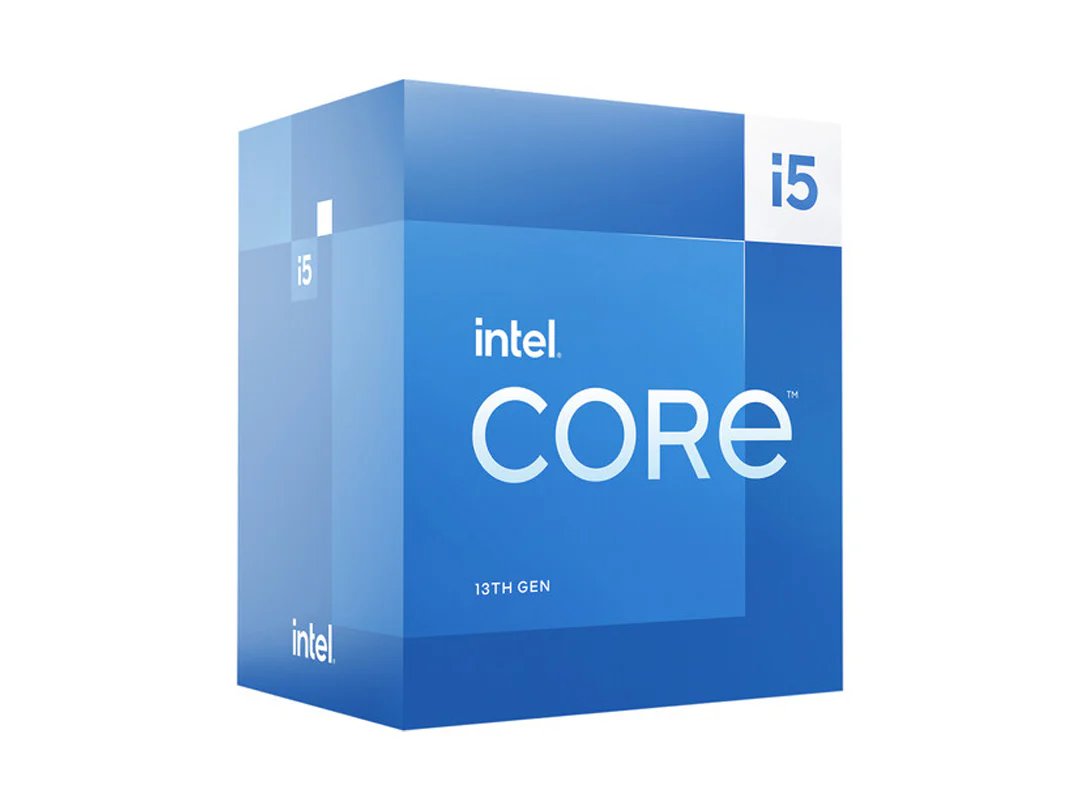

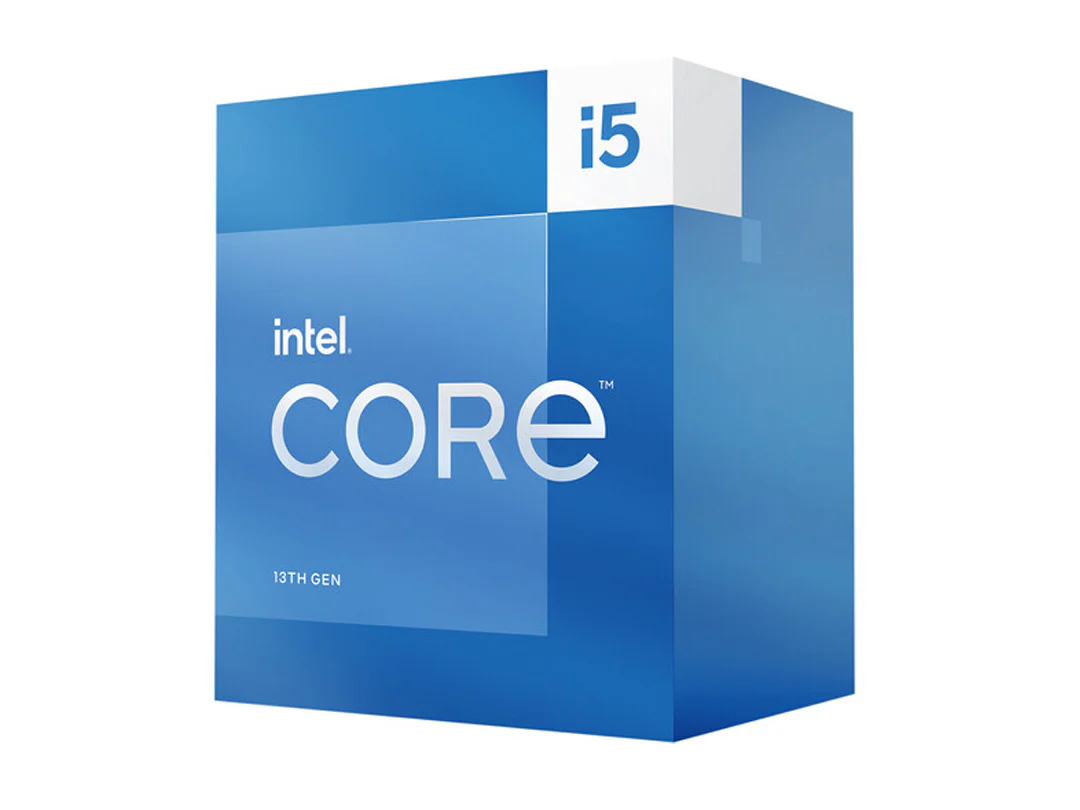

Intel Core i5-13500 2.5 GHz 14-Core LGA 1700 Processor

Power up your productivity, gaming, and content creation with the Intel Core i5-13500 2.5 GHz 14-Core LGA 1700 Processor. This 13th generation desktop processor builds upon the Hybrid Core architecture and Intel 7 process by fitting 14 cores— four more than the previous generation— onto a single processor while still supporting the LGA 1700 socket. Designed to provide strong performance for everyday tasks, the Core i5-13500 features eight low-voltage Efficient-cores that handle background tasks for multitasking while the six 2.5 GHz Performance-cores power applications and games. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.

With 24MB of cache and a 4.8 GHz Turbo frequency, this processor is made to handle a variety of applications. The Core i5-13500 also supports PCI Express 5.0 and dual-channel DDR5 ECC memory at 4800 MHz.

The Core i5-13500 features integrated Intel UHD 770 Graphics. This processor has a 65W TDP (Thermal Design Power) and includes an Intel Laminar RM1 cooling solution. This processor is backed by a 3-year warranty.

Hybrid Core Design

Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks are handled by the processor's Efficient-cores for multitasking.

Intel Thread Director

The Intel Thread Director is built into the CPU's cores, working with the operating system to ensure each of the 20 threads are assigned to the right core at the right time.

PCIe 4.0 & 5.0

This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.

Integrated Graphics

Driven by Intel Xe architecture, the integrated Intel UHD 770 Graphics delivers fast, rich 3D performance for high-quality visuals with support for either one 7680 x 4320 resolution 8K monitor or up to four 3840 x 2160 resolution 4K displays with high-dynamic range.

Gaussian & Neural Accelerator 3.0

Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.

Intel Deep Learning Boost

Accelerates AI inference to improve performance for deep learning workloads.

Key Features

• 14 Cores & 20 Threads
• 2.5 GHz P-Core Clock Speed
• 4.8 GHz Maximum Turbo Frequency
• LGA 1700 Socket
• 24MB Cache Memory
• Dual-Channel DDR5-4800 ECC Memory
• Integrated Intel UHD 770 Graphics
• Hybrid Core Architecture
• Includes Intel Laminar RM1 Cooler
• 13th Generation (Raptor Lake)



Key Specs



CPU Model	Intel Core i5-13500 (13th Gen)
CPU Socket	LGA 1700
Unlocked	No
Number of Cores	14 (6 x P-Cores + 8 x E-Cores)
Base Clock Speed	P-Core: 2.5 GHz E-Core: 1.8 GHz
Maximum Boost Speed	P-Core Turbo: 4.8 GHz E-Core Turbo: 3.5 GHz
Thermal Design Power (TDP, Max)	65 W
Included Thermal Solution	Laminar RM1 (65 W)
Integrated Graphics	Intel UHD Graphics 770



General



CPU Model	Intel Core i5-13500 (13th Gen)
CPU Socket	LGA 1700
Manufacturing Process	10 nm
Maximum CPU Configuration	1S
Maximum Number of PCIe Lanes	16 (Revision 5.0) 4 (Revision 4.0)
Unlocked	No



Performance



Number of Cores	14 (6 x P-Cores + 8 x E-Cores)
Number of Threads	20
Base Clock Speed	P-Core: 2.5 GHz E-Core: 1.8 GHz
Maximum Boost Speed	P-Core Turbo: 4.8 GHz E-Core Turbo: 3.5 GHz
L3 Cache	24 MB



Memory Support



Maximum Capacity	128 GB
Memory Support	DDR5 Up to 4800 MHz DDR4 Up to 3200 MHz
ECC Memory	Yes
Channel Architecture	Dual Channel
Maximum Memory Bandwidth	89.6 GB/s
Optane Memory Support	Yes



Power



Thermal Design Power (TDP, Max)	65 W
Included Thermal Solution	Laminar RM1 (65 W)
Maximum Temperature	212°F / 100°C
Thermal Monitoring Technologies	Yes



Technology



AES Support	Yes
Extension	AVX 2.0, AVX-512, SSE 4.1/4.2
Instruction Set	64-Bit
Virtualization	Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)
DMI	DMI4 (16 GT/s)
vPro Support	Yes
Performance Technologies	Deep Learning Boost, Gaussian and Neural Accelerator 3.0, Hyper-Threading, Intel Thread Director, SpeedShift, SpeedStep, Stable Image Platform Program, Turbo Boost 2.0
Security Technologies	Control-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key, Software Guard Extensions, Threat Detection Technology (TDT), Trusted Execution Technology
Video Technologies	Clear Video, Clear Video HD, InTru 3D, Quick Sync Video
Integrated Graphics	Intel UHD Graphics 770
Maximum Resolution Support	7680 x 4320 at 60 Hz
Supported APIs	DirectX: 12 OpenGL: 4.5 OpenCL: 3
Number of Displays	4
Output Support	DisplayPort, HDMI
Base Clock Speed	300 MHz
Maximum Boost Speed	1.45 GHz



Packaging Info



Package Weight	1.035 lb
Box Dimensions (LxWxH)	4.9 x 4.9 x 3.2"





In the Box

• Intel Core i5-13500 2.5 GHz 14-Core LGA 1700 Processor
• Intel Laminar RM1 Cooler
• Limited 3-Year Manufacturer Warranty
