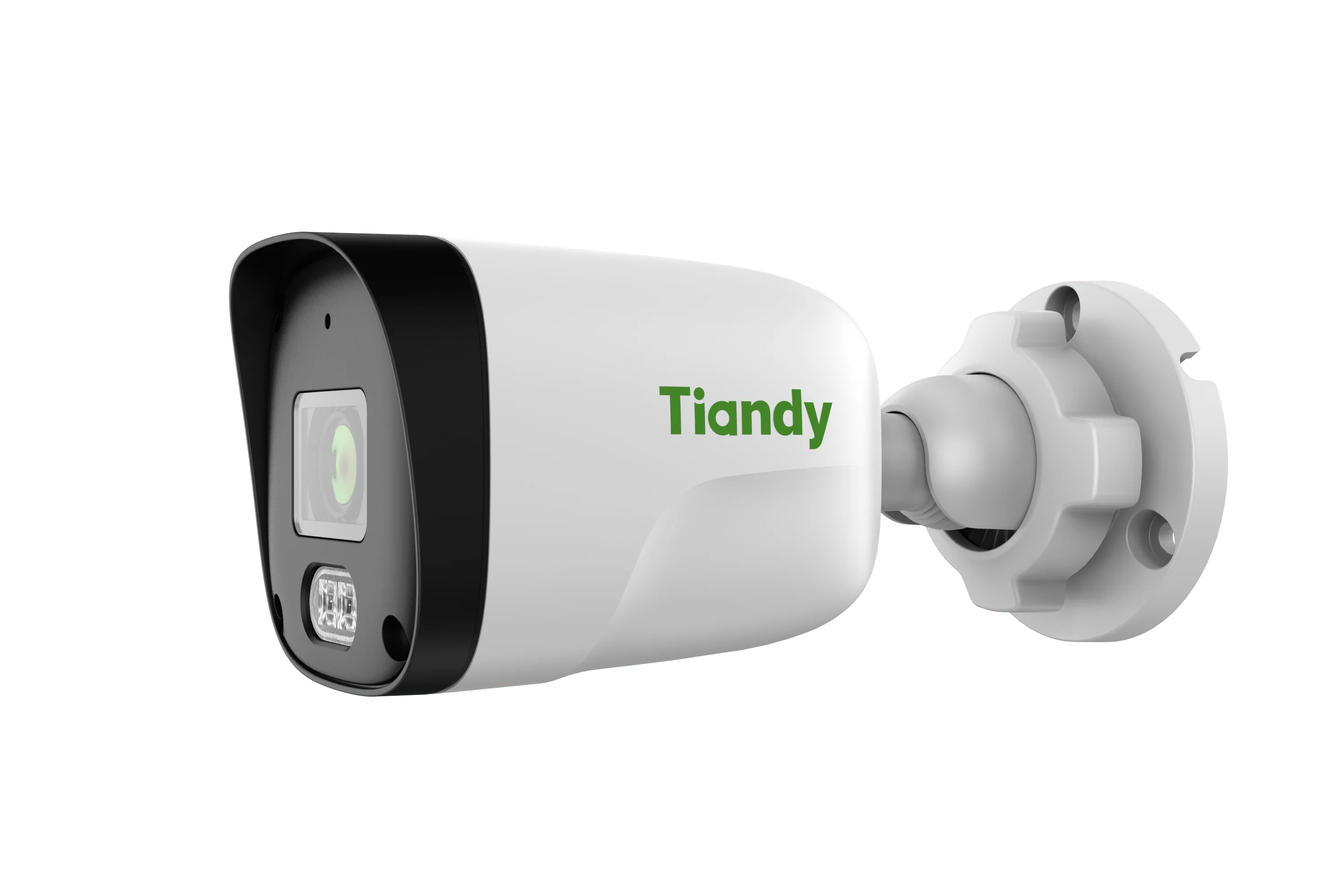

TIANDY TC-C321N 2MP Fixed Bullet Camera
Features:
- Plastic housing
- Up to 2MP,1920×1080@30fps
- S+265/H.265/H.264B/H.264M/H.264H
- Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR
- IR range up to 30m
- Built-in Mic
- Operating conditions -30℃~60℃(-22℉~140℉), ≤95%RH
- ·PoE:IEEE 802.3af,Max. 3W
- IP67
-
Specifications:
Camera
Image Sensor
1/3"CMOS
Min. Illumination
Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR
Shutter Time
1s~1/100000s
Day&Night
IR-cut filter with auto switch (ICR)
Smart IR
Yes
WDR
DWDR
S/N
>47.8dB
Angle Adjustment
0~360°(P); 0~80°(T); 0~360°(R)
Lens
Lens Type
Fixed focal lens
Focal Length
2.8mm
Lens Mount
M12
Aperture Range
F2.0
Aperture Type
Fixed
Field of View
94.4°(H); 53.2°(V); 108.2°(D)
DORI Distance
Detect:41.48m Observe:16.46m Recognize:8.3m Identify:4.1m
Illuminator
IR LEDs
2
IR Distance
Up to 30m
Wavelength
850nm
Compression Standard
Video Compression
S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate
32k~4Mbps
Audio Compression
G.711A/G.711U
Audio Sampling Rate
8kHz
Max. Resolution
2MP,1920×1080@30fps
Main Stream
PAL:25fps(1920×1080, 1280×720, 704×576, 640×480) NTSC:30fps(1920×1080, 1280×720, 704×480, 640×480)
Sub Stream
PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240)
BLC
Yes
HLC
Yes
AGC
Yes
3D DNR
Yes
White Balance
Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance
OSD
Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48
Privacy Mask
4 black static areas
Defog
Yes
Feature
General Alarm
Motion Detection
Exceptions Alarm
IP Address Conflict
Linkage Method
Alarm Output
Network
Protocols
HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4; Telnet; Unicast
System Compatibility
ONVIF(Profile S/T) ; SDK; CGI; Milestone; RTSP
Remote Connection
≤2
Client
Easy7 VMS
Web
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Interface
Communication Interface
1*RJ-45 (10/100 Base-T)
Built-in Mic
Yes
General
Web Client Language
English
Operating Temperature
-30℃~60℃(-22℉~140℉)
Operating Humidity
≤95%RH
Storage Temperature
-30℃~60℃(-22℉~140℉)
Storage Humidity
10%~95%RH(non-condensing)
Power Supply
PoE:IEEE 802.3af,Max. 3W
Protection
Surge4000V; ESD6000V; IP67
Boundary Dimensions
140(L)60(W)60(H)mm
Package Dimensions
155(L)75(W)85(H)mm
GrossWeight
0.2kg
Original: $13.46
-70%$13.46
$4.04
