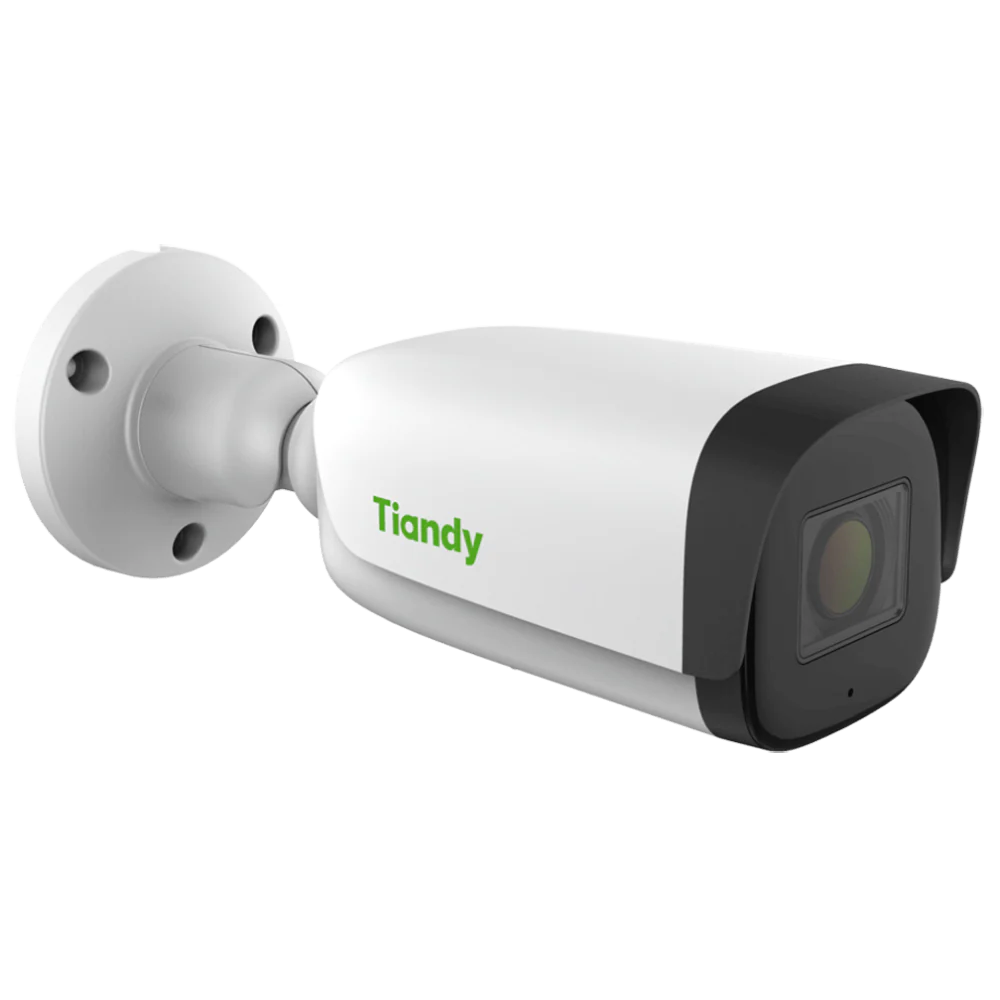

TIANDY TC-C32UN 2MP Motorized IR Bullet Camera

Features:

• 2MP Bullet Camera, Full Metal Housing
• Motorized Lens 2.8-12mm
• Up to 1920×1080@30fps
• S+265/H.265/H.264
• Min. illumination Color: [email protected]
• Smart IR, IR Range: 80m
• Support tripwire and perimeter
• Built-in Mic, SD Card Slot, Reset Button
• Operating Conditions -35°~65°, 0~95% RH
• POE, IP67

Specification

Camera

• • Image Sensor – 1/2.9″ CMOS
  • Signal System –  PAL/NTSC
  • Min. Illumination – Color: 0.02Lux@ (F1.6, ACG ON), B/W: 0Lux with IR
  • Shutter Time – 1s to 1/100,000s
  • Day & Night – Dual IR Cut Filter with Auto Switch
  • Wide Dynamic Range – Digital WDR
  • Angle Adjustment – Bracket, pan 0~360°, tilt 0~75°, roate 0~360°

Lens

• • Lens Type – Motorized
  • Focus – 2.8-12mm
  • Lens Mount – Φ14
  • Aperture – F1.6~F3.3, Fixed
  • FOV – Horizontal field of view: 98°~28°

Illuminator

• • IR LEDs – 4
  • IR Range – Up to 80m
  • Wavelength – 850nm
  • White LEDs/Warmlights – N/A

Compression Standard

• • Video Compression – S+265/H.265/H.264
  • Video Bit Rate – 32Kbps~6Mbps
  • Audio Compression – G.711/G.711U/ADPCM
  • Audio Bit Rate – 8K~48Kbps


• • Max. Resolution – 1920×1080
  • Main Stream PAL – 25fps (1920×1080, 1280×720, 704×576, 640×480); NTSC: 30fps (1920×1080, 1280×720, 704×480, 640×480)
  • Sub Stream PAL – 25fps (704×576, 704×288, 640×360, 352×288); NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
  • Third Stream – N/A
  • Image Setting – Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
  • Image Enhancement – BLC/3D DNR/HLC
  • ROI  – N/A
  • OSD – 16×16, 32×32, 48×48, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions
  • Picture Overlay – N/A
  • Privacy Mask – Yes, 4 regions
  • Smart Defog – Yes

Feature

• • Alarm Trigger – Motion Detection, Mask Alarm, IP Address Conflict
  • Video Analytics – Tripwire, Perimeter
  • Early Warning (EW) –  N/A

Network

• • ANR – Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR)
  • Protocols – TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet
  • System Compatibility – ONVIF (PROFILE S/T/G), SDK, CGI (IE), P2P(Mutually exclusive with Profile G)
  • Remote Connection – ≤7
  • Client – Easy7, EasyLive
  • Web Version – Web5

Interface

• • Communication Interface – 1 RJ45 10M/ 100M self adaptive Ethernet port
  • Audio I/O – Mic in
  • Alarm I/O – N/A
  • Reset Button – Yes
  • On-board storage – Built-in MicroSD card slot, up to 512 GB

General

• • Web Client Language – 15 languages English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese
  • Operating Conditions –  -35℃～65℃, 0～95% RH
  • Power Supply – DC 12V±25%, PoE (802.3af)
  • Power Consumption – MAX: 9W (12V) MAX: 10W (PoE)
  • Protection – IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
  • Heater – N/A
  • Dimensions – 239×90×90mm (9.41×3.54×3.54inch)
  • Weight  – 0.9Kg (1.98lb)
